Dual-microphone audio
Dual-MIC noise reduction with remote pickup specified for distances within 5 meters.
Golfeye G20 · Technical Dossier
Golfeye G20 Hardware Specs & System Integration
Verified hardware parameters for the Golfeye G20 AI golf camera, including edge computing, imaging, display, wireless communication, interfaces, gimbal structure, power, and operating environment.
Core system
On-device compute, imaging, display, and connectivity.
The following values are taken from the Golfeye G20 technical dossier, revision 03 / 2026.07.
12.5 TOPSQualcomm® Snapdragon™ QCS6490 edge AI compute
18× OpticalLong-range optical zoom imaging module with MIPI interface
2.08″ AMOLED410 × 480 capacitive touchscreen for device interaction
1.3 mDeployed height with extension rod and ground spike
| Subsystem | Golfeye G20 Specification | Engineering Notes |
|---|---|---|
| Processor | Qualcomm® Snapdragon™ QCS6490 | 12.5 TOPS on-device AI computing |
| Memory & storage | 4 GB + 64 GB | LPDDR5 memory architecture and 64 GB eMMC storage; final production configuration should be confirmed per order |
| Imaging module | 18× optical zoom | MIPI imaging interface |
| Device display | 2.08-inch AMOLED touchscreen | 410 × 480 capacitive touch interface |
| Wireless | Wi-Fi 6 + Bluetooth | Independent Wi-Fi and Bluetooth modules; dual-band; Station and Hotspot modes |
| Position & motion | GPS / IMU | Independent GPS module, three-axis accelerometer, and three-axis gyroscope |
Hardware I/O
Audio, USB, storage, and physical controls.
Device speaker
1318 high-power speaker for audio output directly from the device.
USB-C 3.0+
Type-C interface supports charging, gimbal firmware upgrades, and engineering diagnostics.
Micro SD storage
One removable Micro SD card slot with hot-swap support.
Physical controls
Power, recording, and reset controls are provided on the device.
Status indication
Green flashing during startup, solid green when ready, red flashing while charging, and green when fully charged.
Gimbal & deployment
Three-axis stabilization and three-part modular assembly.

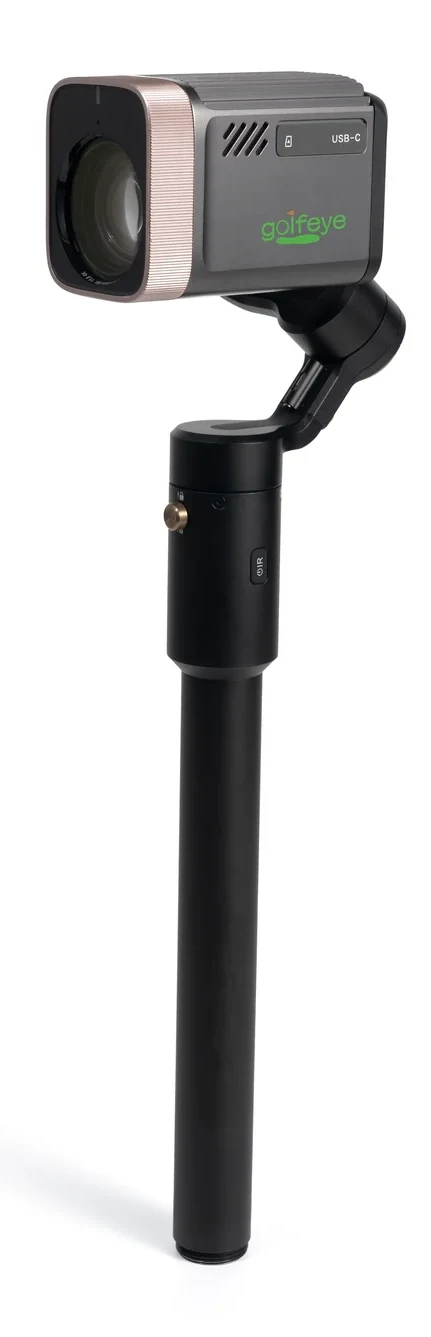

G20 combines the camera module, motorized gimbal unit, and extension rod with ground spike into a portable deployment structure.
- 3-axis gimbalThree axes with three motor locks; angular range and software limits should follow the final specification attachment.
- 3 modular partsCamera module, gimbal motor unit, and extension rod with ground spike.
- Camera module size105 × 62 × 75 mm.
- Deployed heightApproximately 1.3 meters.
Power & Operating Environment
| Parameter | Golfeye G20 Specification | Notes |
|---|---|---|
| Battery pack | 3 × 21700 cells | Each cell is specified as 5,000 mAh |
| Charging interface | USB-C | Also supports gimbal upgrades and diagnostics |
| Operating temperature | -10°C to +55°C | 14°F to 131°F |
| Storage temperature | -30°C to +80°C | -22°F to 176°F |
| Humidity | 95% RH @ 60°C | Environmental specification from the technical dossier |
Important: The current G20 dossier does not state a continuous runtime, ingress-protection rating, total device weight, or full assembled dimensions. These values should be confirmed with the engineering team for each production configuration.

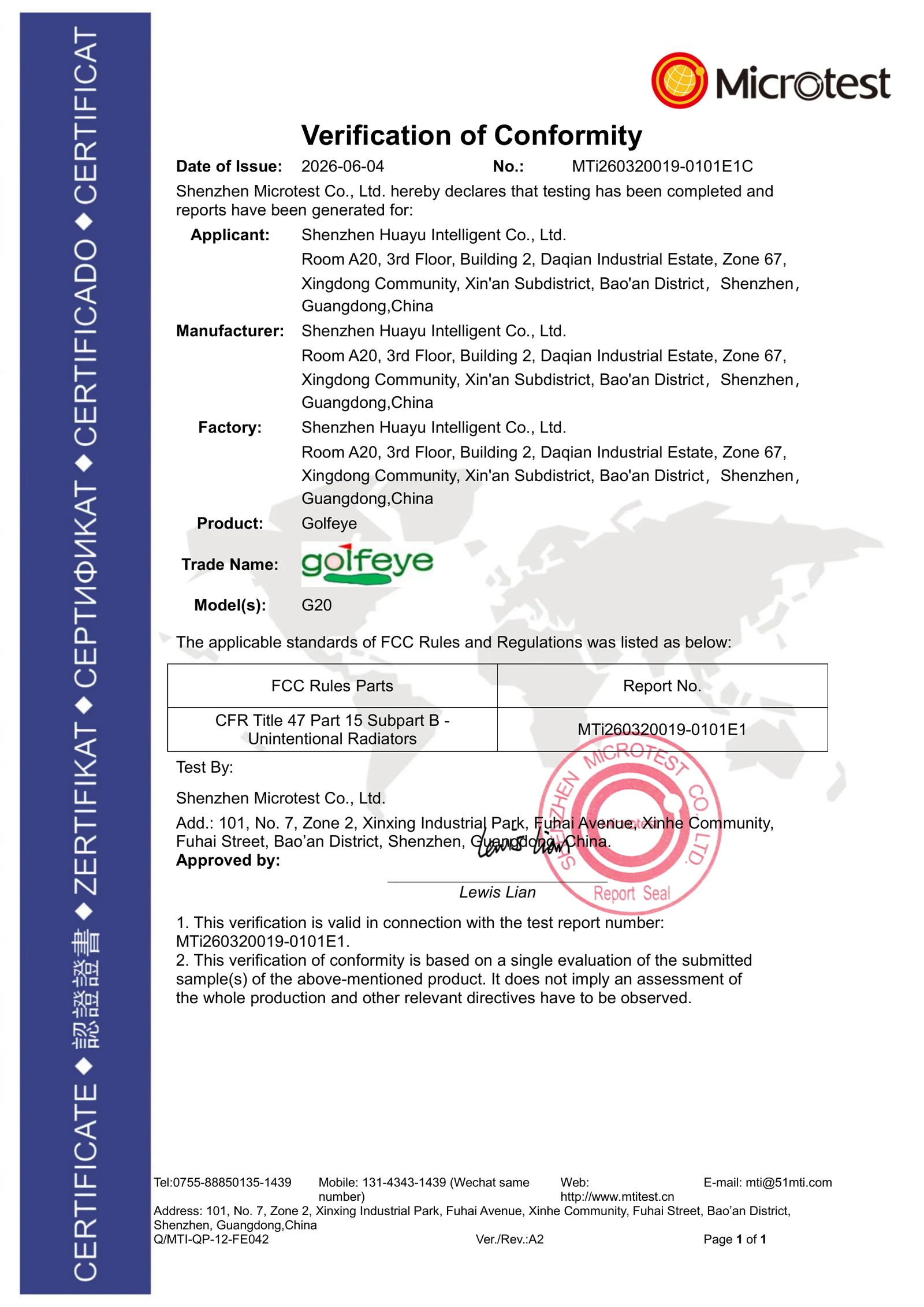

G20 compliance reference
FCC Verification of Conformity.
The displayed document identifies Golfeye model G20 and was issued by Shenzhen Microtest Co., Ltd. on June 4, 2026.
Certificate numberMTi260320019-0101E1C
Applicable ruleCFR Title 47 Part 15 Subpart B — Unintentional Radiators
Test reportMTi260320019-0101E1
Applicant / manufacturerShenzhen Huayu Intelligent Co., Ltd.
Document boundary: The certificate states that the verification is based on a single evaluation of the submitted sample and does not imply an assessment of the whole production. It is presented as a Verification of Conformity for Part 15 Subpart B, not as an FCC Grant of Equipment Authorization, and it does not show an FCC ID.
Open the G20 FCC verification PDF →
Integration interfaces
Documented connection paths for G20 deployments.
This section lists only interfaces confirmed by the G20 technical dossier and current Golfeye App workflow.
Dual-band wireless communication with Station and Hotspot operating modes.
Independent Bluetooth module used as part of the device connection and preparation workflow.
Device status, live preview, recording control, media downloads, editing, sharing, automation, and live/replay rooms.
Charging plus gimbal upgrade and engineering diagnostic access.
Removable local storage with hot-swap support.
API, SDK, POS, booking-system, and third-party software support are not specified in the current dossier and require engineering confirmation.
Frequently Asked Questions
Golfeye G20 uses the Qualcomm Snapdragon QCS6490 platform with 12.5 TOPS of on-device AI computing capability.
The technical dossier specifies an 18× optical zoom imaging module with a MIPI interface and a 2.08-inch 410 × 480 AMOLED capacitive touchscreen.
G20 includes independent Wi-Fi 6 and Bluetooth modules. Wi-Fi is dual-band and supports both Station and Hotspot modes.
The battery pack uses three 21700 cells, with each cell specified as 5,000 mAh. The current dossier does not state a verified continuous runtime.
The current dossier confirms Wi-Fi 6, Bluetooth, USB-C, Micro SD, GPS/IMU, and the Golfeye App workflow. API, SDK, POS, booking, and third-party software integrations require separate engineering confirmation.
The specified operating temperature is -10°C to +55°C, storage temperature is -30°C to +80°C, and humidity is 95% RH at 60°C. The current dossier does not provide an IP rating.
The available document is Verification of Conformity MTi260320019-0101E1C, issued for model G20 under CFR Title 47 Part 15 Subpart B and associated with test report MTi260320019-0101E1. It is not presented as an FCC Grant and does not show an FCC ID.
