Golfeye G20
Golfeye G20 combines 18× optical imaging, a three-axis motorized gimbal, 12.5 TOPS on-device compute, touchscreen control, and a three-part modular deployment structure.
Hardware data follows the G20 Technical Dossier Rev.03 / 2026.07 and supplied user guide. Final package, firmware, certifications, and market configuration must be confirmed for each order.
Documented G20 hardware specifications.
Verified hardware values from the current technical dossier, organized for product and deployment review.
| AI processing | 12.5 TOPS on-device compute | Memory & storage | 4 GB LPDDR5 · 64 GB eMMC · Micro SD |
|---|---|---|---|
| Imaging | 18× optical zoom · MIPI interface | Display | 2.08″ AMOLED touchscreen · 410 × 480 |
| Gimbal | Three-axis movement · three motor locks | Positioning | Independent GPS · 3-axis accelerometer · 3-axis gyroscope |
| Wireless | Dual-band Wi-Fi 6 · Station and Hotspot · Bluetooth | Audio | Dual microphones with noise reduction · device speaker |
| Ports | USB-C for charging, upgrade and debugging · Micro SD | Controls | Power · Record · Reset · status indicators |
| Battery | 3 × 21700 cells · 5,000 mAh each | Environment | Operating −10°C to +55°C · storage −30°C to +80°C · 95% RH @ 60°C |
Three modular parts, deployed to 1.3 metres.
The documented structure combines the camera module, gimbal motor unit, and extension rod with ground spike. The supplied guide also shows a tripod option for flat surfaces.

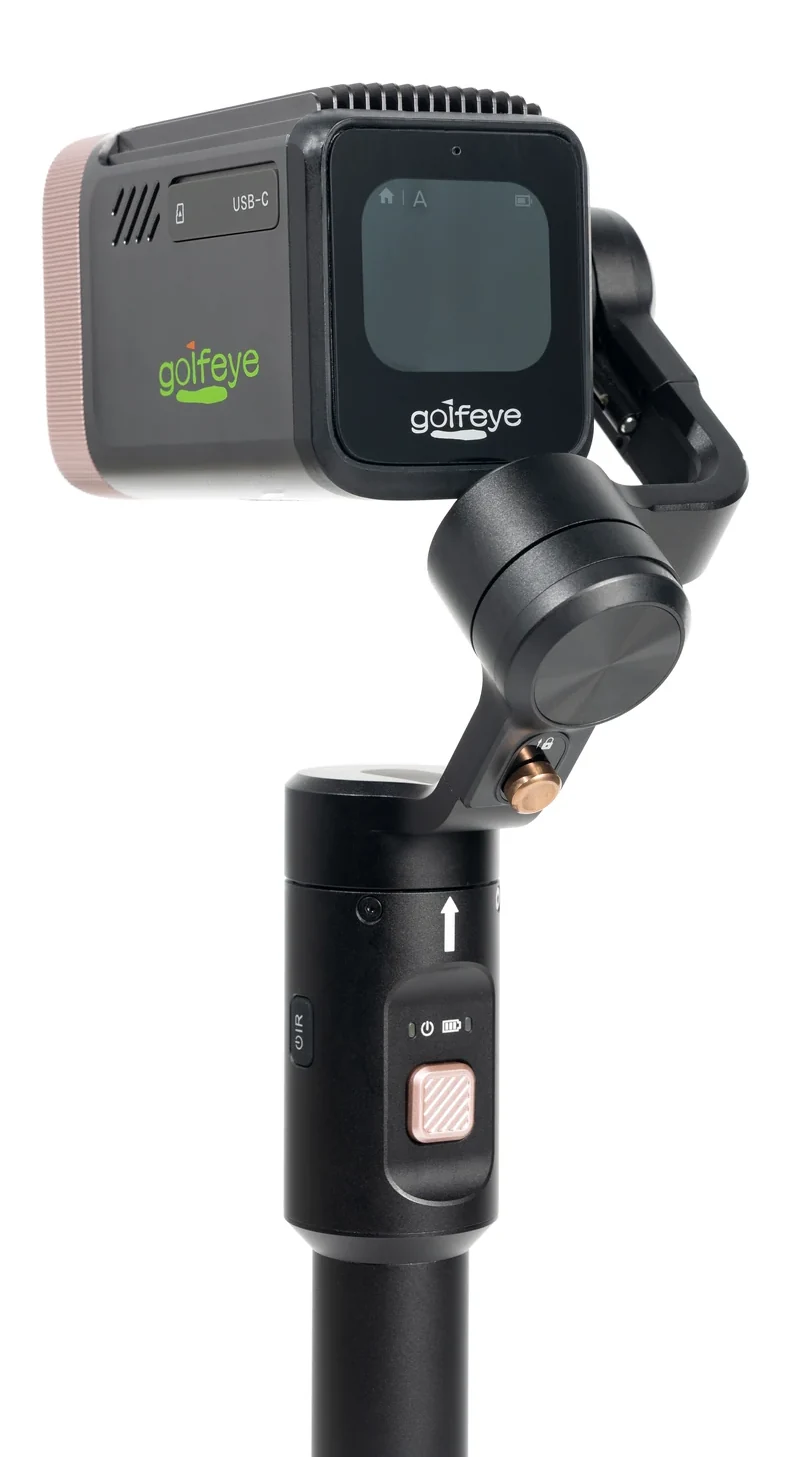

- Camera module105 × 62 × 75 mm body with optical imaging and rear touchscreen.
- Gimbal motor unitThree axes with three locks that must be released before operation and secured for transport.

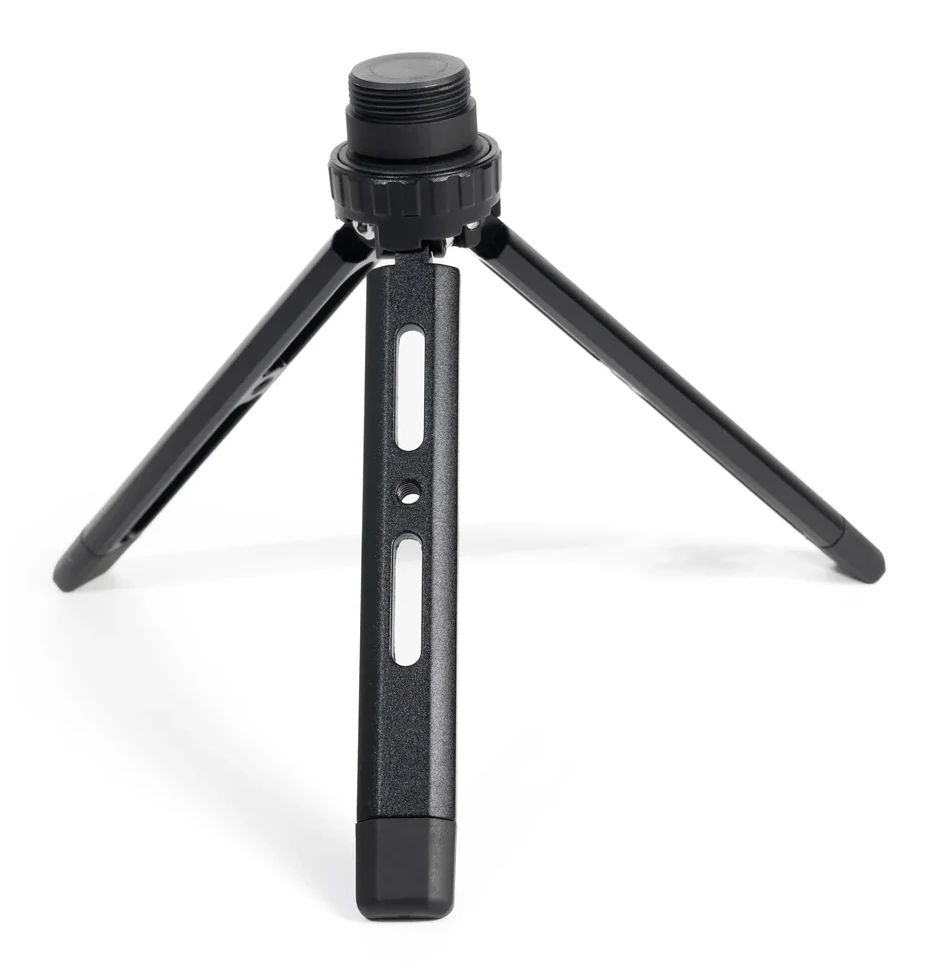

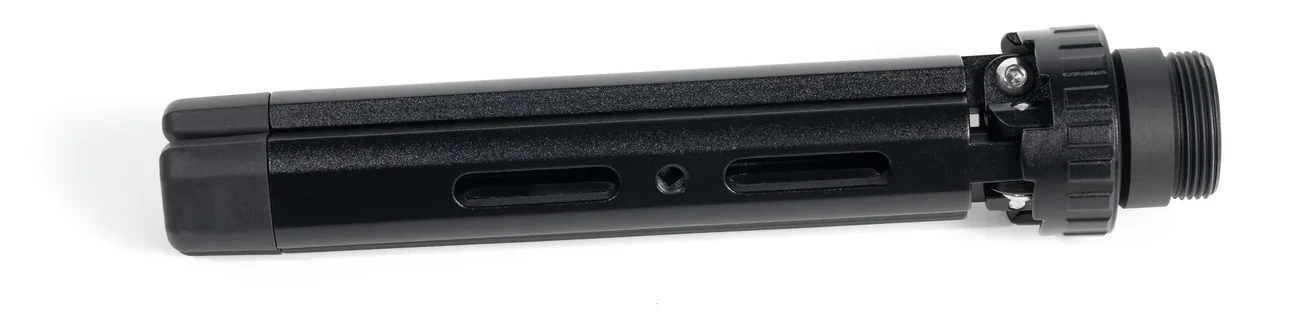

- Extension and baseGround spike for turf or tripod for suitable flat ground; confirm stability and site safety before use.

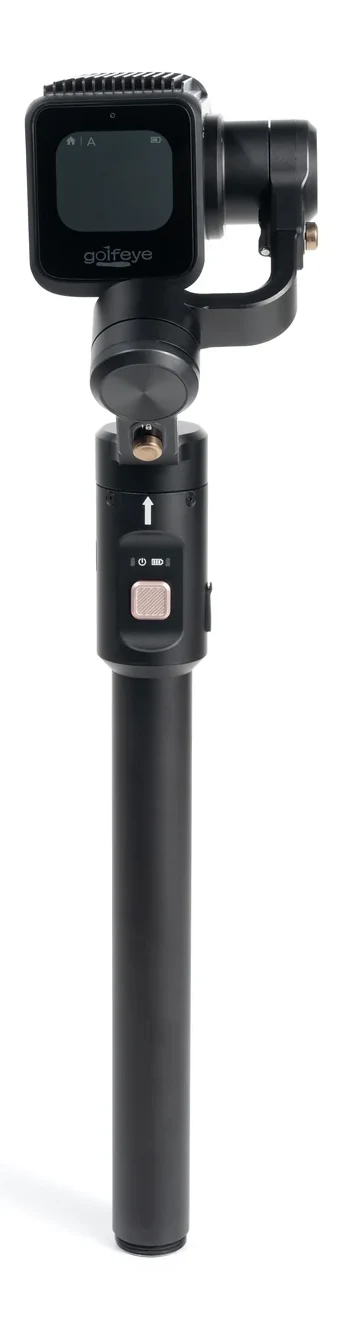

Camera, gimbal and modular mounting system.

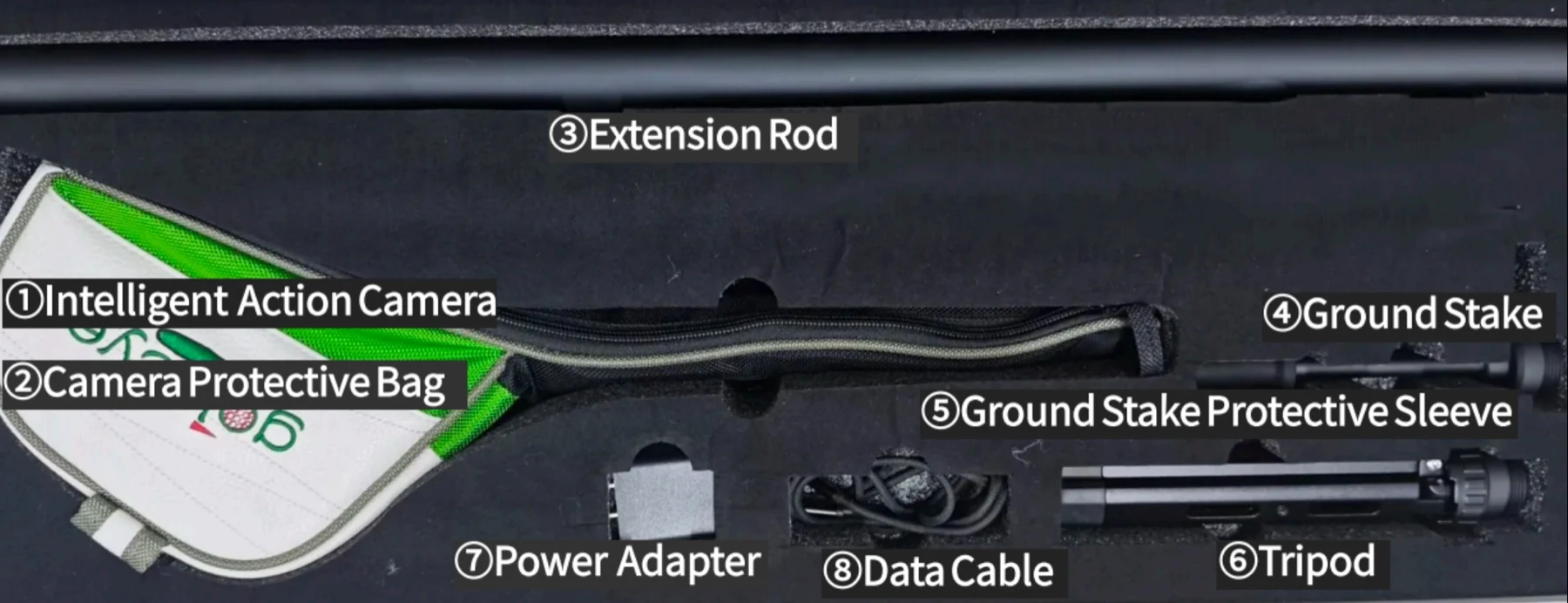

Review the G20 camera body, motorized gimbal, controls, modular mounting components, and the supplied package reference in one organized overview.
Four documented stages from preparation to delivery.
The supplied App manual documents connection, capture, media handling, and content delivery as one camera-and-phone workflow.
- 01Prepare and connect
Release the gimbal locks, power on the camera, and connect the phone through the documented Golfeye App workflow.
- 02Preview and capture
Use the phone preview and select Automatic, Putter, or FreeStyle mode according to the intended capture scenario.
- 03Review and manage media
Open captured media in the App workflow for review, organization, supported editing, and highlight settings.
- 04Deliver or view
Use the documented sharing, live-room, or replay-room workflow. Live and cloud functions require the operating phone and network conditions described in Technology.
FCC Verification of Conformity for Golfeye G20.
Shenzhen Microtest Co., Ltd. issued this Verification of Conformity on June 4, 2026, under certificate number MTi260320019-0101E1C.
CFR Title 47 Part 15 Subpart B
- Product and model: Golfeye · trade name golfeye · model G20.
- Applicant, manufacturer and factory: Shenzhen Huayu Intelligent Co., Ltd.
- Applicable rule: CFR Title 47 Part 15 Subpart B — Unintentional Radiators.
- Associated test report: MTi260320019-0101E1.
